VB.Net Program to Solve

Simultaneous Nonlinear Equations

Using Newton's Method

by Namir Shammas

The following program calculates the roots of a set of nonlinear equations using Newton's method.

Click here to download a ZIP file containing the project files for this program.

The program prompts you to either use the predefined default input values or to enter the following:

1. The values for the initial set of variables

2. The values for the tolerances for each variable.

3. The function tolerance

4. The maximum number of iterations

In case you choose the default input values, the program displays these values and proceeds to find the roots. In the case you select being prompted, the program displays the name of each input variable along with its default value. You can then either enter a new value or simply press Enter to use the default value. This approach allows you to quickly and efficiently change only a few input values if you so desire.

The program displays the following final results:

1. The coordinates of the minimum value.

2. The number of iterations

The current code finds the roots for the following functions:

F1(X) = X1 * X2 * X3 - 6

F2(X) = (X1 + X2) / X3 - 1

F3(X) = (X1 + 1) * X2 - X3 - 1

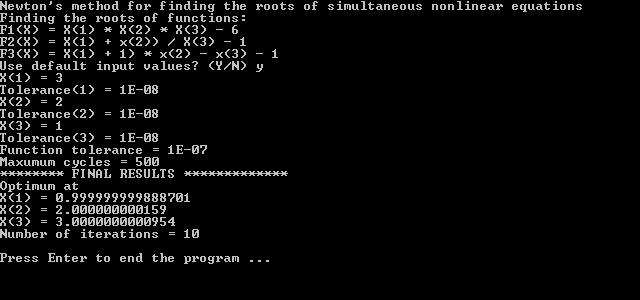

Using initial guesses of 3, 2, 1, and 1e-7 for the all variable tolerances, a function tolerance of 1e-7, and a maximum number of 500 iterations. Here is the sample console screen:

Here is the listing for the main module. The module contains several test functions:

Module Module1

  Sub Main()
    Dim nNumVars As Integer = 3
    Dim fX() As Double = {3, 2, 1}
    Dim fParam() As Double = {0, 0, 0}
    Dim fToler() As Double = {0.00000001, 0.00000001, 0.00000001}
    Dim nIter As Integer = 0
    Dim nMaxIter As Integer = 500
    Dim fEpsFx As Double = 0.0000001
    Dim I As Integer
    Dim sAnswer As String
    Dim oRoot As CRoots_NLE_Newton1
    Dim MyFx As MyFxDelegate = AddressOf Fx1
    Dim SayFx As SayFxDelegate = AddressOf SayFx1

    oRoot = New CRoots_NLE_Newton1

    Console.WriteLine("Newton's method for finding the roots of simultaneous nonlinear equations")
    Console.WriteLine("Finding the roots of functions:")
    Console.WriteLine(SayFx())
    Console.Write("Use default input values? (Y/N) ")
    sAnswer = Console.ReadLine()
    If sAnswer.ToUpper() = "Y" Then
      For I = 0 To nNumVars - 1
        Console.WriteLine("X({0}) = {1}", I + 1, fX(I))
        Console.WriteLine("Tolerance({0}) = {1}", I + 1, fToler(I))
      Next
      Console.WriteLine("Function tolerance = {0}", fEpsFx)
      Console.WriteLine("Maxumum cycles = {0}", nMaxIter)
    Else
      For I = 0 To nNumVars - 1
        fX(I) = GetIndexedDblInput("X", I + 1, fX(I))
        fToler(I) = GetIndexedDblInput("Tolerance", I + 1, fToler(I))
      Next
      fEpsFx = GetIntInput("Function tolerance", fEpsFx)
      nMaxIter = GetDblInput("Maxumum cycles", nMaxIter)
    End If

    Console.WriteLine("******** FINAL RESULTS *************")
    oRoot.CalcRoots(nNumVars, fX, fParam, fToler, fEpsFx, nMaxIter, nIter, MyFx)
    Console.WriteLine("Optimum at")
    For I = 0 To nNumVars - 1
      Console.WriteLine("X({0}) = {1}", I + 1, fX(I))
    Next
    Console.WriteLine("Number of iterations = {0}", nIter)
    Console.WriteLine()
    Console.Write("Press Enter to end the program ...")
    Console.ReadLine()
  End Sub

  Function GetDblInput(ByVal sPrompt As String, ByVal fDefInput As Double) As Double
    Dim sInput As String

    Console.Write("{0}? ({1}): ", sPrompt, fDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return fDefInput
    End If
  End Function

  Function GetIntInput(ByVal sPrompt As String, ByVal nDefInput As Integer) As Integer
    Dim sInput As String

    Console.Write("{0}? ({1}): ", sPrompt, nDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return nDefInput
    End If
  End Function

  Function GetIndexedDblInput(ByVal sPrompt As String, ByVal nIndex As Integer, ByVal fDefInput As Double) As Double
    Dim sInput As String

    Console.Write("{0}({1})? ({2}): ", sPrompt, nIndex, fDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return fDefInput
    End If
  End Function

  Function GetIndexedIntInput(ByVal sPrompt As String, ByVal nIndex As Integer, ByVal nDefInput As Integer) As Integer
    Dim sInput As String

    Console.Write("{0}({1})? ({2}): ", sPrompt, nIndex, nDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return nDefInput
    End If
  End Function

  Function SayFx1() As String
    Return "F1(X) = X(1) * X(2) * X(3) - 6" & vbCrLf & _
            "F2(X) = X(1) + x(2)) / X(3) - 1" & vbCrLf & _
            "F3(X) = X(1) + 1) * x(2) - x(3) - 1"
  End Function

  Function Fx1(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double, ByVal nVarIndex As Integer) As Double
    Select Case nVarIndex
      Case 1
        Return X(0) * X(1) * X(2) - 6
      Case 2
        Return (X(0) + X(1)) / X(2) - 1
      Case Else ' case 3
        Return (X(0) + 1) * X(1) - X(2) - 1
    End Select
  End Function

End Module

Notice that the user-defined function has the following:

An accompanying helper function to display the mathematical expressions of the functions being solved. For example, function Fx1 has the helper function SayFx1 to list the function optimized in Fx1.

A Select statement that is used to evaluate each of the mathematical functions.

Please observe the following rules::

When you add new user-defined function to solve, you must also add an accompanying helper function that states the function mathematical make up.
When you edit an existing user-defined function to solve, you must also edit its accompanying helper function to reflect the changes you make in the function mathematical make up
When you select a new user-defined function you must alter both variables MyFx, and SayFx to specify the new function and its accompanying helper function.

The program uses the following class to solve the simultaneous nonlinear functions along with the matrix class library (MatrixLib.vb) which you can download from the VB.Net: Master Page.

Public Delegate Function MyFxDelegate(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double, ByVal nVarIndex As Integer) As Double
Public Delegate Function SayFxDelegate() As String

Public Class CRoots_NLE_Newton1


  Public Sub CalcRoots(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double, ByRef fToler() As Double, _
                       ByVal fEpsFx As Double, ByVal nMaxIter As Integer, ByRef nIter As Integer, ByVal MyFx As MyFxDelegate)

    Dim g(nNumVars) As Double
    Dim Jmat(nNumVars, nNumVars) As Double
    Dim H, fXJ, Fp As Double
    Dim I, J As Integer
    Dim bGoOn As Boolean

    nIter = 0
    bGoOn = True
    Do While bGoOn And nIter < nMaxIter

      nIter += 1
      If nIter > nMaxIter Then Exit Do

      For I = 0 To nNumVars - 1
        g(I) = MyFx(nNumVars, fX, fParam, I)
        For J = 0 To nNumVars - 1
          H = 0.01 * (1 + Math.Abs(fX(J)))
          fXJ = fX(J)
          fX(J) = fXJ + H
          Fp = MyFx(nNumVars, fX, fParam, I)
          fX(J) = fXJ
          Jmat(I, J) = (Fp - g(I)) / H
        Next
      Next

      ' solve for the guess improvements
      MatrixLibVb.SolveLU(Jmat, g, nNumVars)
      For I = 0 To nNumVars - 1
        fX(I) = fX(I) - g(I)
      Next

      ' check refinement convergence
      bGoOn = False
      For I = 0 To nNumVars - 1
        If Math.Abs(g(I)) > fToler(I) Then
          bGoOn = True
        End If
      Next

      ' check function convergence
      If bGoOn Then
        bGoOn = False
        For I = 0 To nNumVars - 1
          If Math.Abs(g(I)) > fEpsFx Then
            bGoOn = True
          End If
        Next
      End If
    Loop

  End Sub

End Class
