The following program uses the Davidson-Fletcher-Powell (DFP) method to find the minimum of a function. This method is a quasi-Newton method. That is, the DFP algorithm is based on Newton's method but performs different calculations to update the guess refinements.
Click here to download a ZIP file containing the project files for this program.
The program prompts you to either use the predefined default input values or to enter the following:
1. The initial guesses for the optimum point for each variable..
2. The tolerance for each variable,
3. The tolerance for the function
4. The maximum number of iteration cycles
In case you choose the default input values, the program displays these values and proceeds to find the optimum point. In the case you select being prompted, the program displays the name of each input variable along with its default value. You can then either enter a new value or simply press Enter to use the default value. This approach allows you to quickly and efficiently change only a few input values if you so desire.
The program displays the following final results:
1. The coordinates of the minimum point.
2. The minimum function value.
3. The number of iterations
The current code finds the minimum for the following function:
f(x1,x2) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

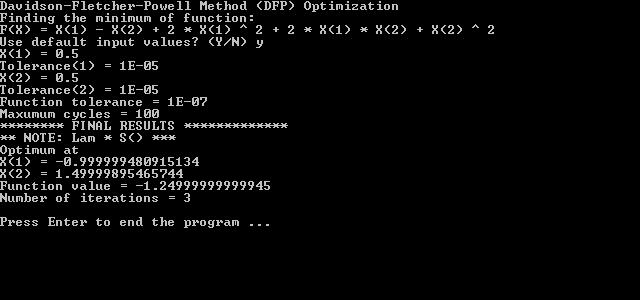

Using, for each variable, an initial value of 0, initial step size of 0.1, minimum step size of 1e-7, and using a function tolerance of 1e-7. Here is the sample console screen:
Here is the listing for the main module. The module contains several test functions:
Module Module1
Sub Main()
Dim nNumVars As Integer = 2
Dim fX() As Double = {0.5, 0.5}
Dim fParam() As Double = {0, 0}
Dim fToler() As Double = {0.00001, 0.00001}
Dim nIter As Integer = 0
Dim nMaxIter As Integer = 100
Dim fEpsFx As Double = 0.0000001
Dim fEpsGrad As Double = 0.0000001
Dim I As Integer
Dim fBestF As Double
Dim sAnswer As String, sErrorMsg As String = ""
Dim oOpt As COptimDFP1
Dim MyFx As MyFxDelegate = AddressOf Fx3
Dim SayFx As SayFxDelegate = AddressOf SayFx3
oOpt = New COptimDFP1
Console.WriteLine("Davidson-Fletcher-Powell Method (DFP) Optimization")
Console.WriteLine("Finding the minimum of function:")
Console.WriteLine(SayFx())
Console.Write("Use default input values? (Y/N) ")
sAnswer = Console.ReadLine()
If sAnswer.ToUpper() = "Y" Then
For I = 0 To nNumVars - 1
Console.WriteLine("X({0}) = {1}", I + 1, fX(I))
Console.WriteLine("Tolerance({0}) = {1}", I + 1, fToler(I))
Next
Console.WriteLine("Function tolerance = {0}", fEpsFx)
Console.WriteLine("Maxumum cycles = {0}", nMaxIter)
Else
For I = 0 To nNumVars - 1
fX(I) = GetIndexedDblInput("X", I + 1, fX(I))
fToler(I) = GetIndexedDblInput("Tolerance", I + 1, fToler(I))
Next
fEpsFx = GetDblInput("Function tolerance", fEpsFx)
nMaxIter = GetIntInput("Maxumum cycles", nMaxIter)
End If
Console.WriteLine("******** FINAL RESULTS *************")
fBestF = oOpt.CalcOptim(nNumVars, fX, fParam, fToler, fEpsFx, fEpsGrad, nMaxIter, nIter, sErrorMsg, MyFx)
If sErrorMsg.Length > 0 Then
Console.WriteLine("** NOTE: {0} ***", sErrorMsg)
End If
Console.WriteLine("Optimum at")
For I = 0 To nNumVars - 1
Console.WriteLine("X({0}) = {1}", I + 1, fX(I))
Next
Console.WriteLine("Function value = {0}", fBestF)
Console.WriteLine("Number of iterations = {0}", nIter)
Console.WriteLine()
Console.Write("Press Enter to end the program ...")
Console.ReadLine()
End Sub
Function GetDblInput(ByVal sPrompt As String, ByVal fDefInput As Double) As Double
Dim sInput As String
Console.Write("{0}? ({1}): ", sPrompt, fDefInput)
sInput = Console.ReadLine()
If sInput.Trim().Length > 0 Then
Return Double.Parse(sInput)
Else
Return fDefInput
End If
End Function
Function GetIntInput(ByVal sPrompt As String, ByVal nDefInput As Integer) As Integer
Dim sInput As String
Console.Write("{0}? ({1}): ", sPrompt, nDefInput)
sInput = Console.ReadLine()
If sInput.Trim().Length > 0 Then
Return Integer.Parse(sInput)
Else
Return nDefInput
End If
End Function
Function GetIndexedDblInput(ByVal sPrompt As String, ByVal nIndex As Integer, ByVal fDefInput As Double) As Double
Dim sInput As String
Console.Write("{0}({1})? ({2}): ", sPrompt, nIndex, fDefInput)
sInput = Console.ReadLine()
If sInput.Trim().Length > 0 Then
Return Double.Parse(sInput)
Else
Return fDefInput
End If
End Function
Function GetIndexedIntInput(ByVal sPrompt As String, ByVal nIndex As Integer, ByVal nDefInput As Integer) As Integer
Dim sInput As String
Console.Write("{0}({1})? ({2}): ", sPrompt, nIndex, nDefInput)
sInput = Console.ReadLine()
If sInput.Trim().Length > 0 Then
Return Integer.Parse(sInput)
Else
Return nDefInput
End If
End Function
Function SayFx1() As String
Return "F(X) = 10 + (X(1) - 2) ^ 2 + (X(2) + 5) ^ 2"
End Function
Function Fx1(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double) As Double
Return 10 + (X(0) - 2) ^ 2 + (X(1) + 5) ^ 2
End Function
Function SayFx2() As String
Return "F(X) = 100 * (X(1) - X(2) ^ 2) ^ 2 + (X(2) - 1) ^ 2"
End Function
Function Fx2(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double) As Double
Return 100 * (X(0) - X(1) ^ 2) ^ 2 + (X(1) - 1) ^ 2
End Function
Function SayFx3() As String
Return "F(X) = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2"
End Function
Function Fx3(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double) As Double
Return X(0) - X(1) + 2 * X(0) ^ 2 + 2 * X(0) * X(1) + X(1) ^ 2
End Function
End Module
Notice that the user-defined functions have accompanying helper functions to display the mathematical expression of the function being optimized. For example, function Fx1 has the helper function SayFx1 to list the function optimized in Fx1. Please observe the following rules::
The program uses the following class to optimize the objective function:
Public Delegate Function MyFxDelegate(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double) As Double
Public Delegate Function SayFxDelegate() As String
Public Class COptimDFP1
Dim m_MyFx As MyFxDelegate
Protected Function MyFxEx(ByVal nNumVars As Integer, _
ByRef fX() As Double, ByRef fParam() As Double, _
ByRef fDeltaX() As Double, ByVal fLambda As Double) As Double
Dim I As Integer
Dim fXX(nNumVars) As Double
For I = 0 To nNumVars - 1
fXX(I) = fX(I) + fLambda * fDeltaX(I)
Next I
MyFxEx = m_MyFx(nNumVars, fXX, fParam)
End Function
Protected Function FirstDeriv(ByVal nNumVars As Integer, _
ByRef fX() As Double, ByRef fParam() As Double, _
ByVal nIdxI As Integer) As Double
Dim fXt, h, Fp, Fm As Double
fXt = fX(nIdxI)
h = 0.01 * (1 + Math.Abs(fXt))
fX(nIdxI) = fXt + h
Fp = m_MyFx(nNumVars, fX, fParam)
fX(nIdxI) = fXt - h
Fm = m_MyFx(nNumVars, fX, fParam)
fX(nIdxI) = fXt
FirstDeriv = (Fp - Fm) / 2 / h
End Function
Protected Sub GetFirstDerives(ByVal nNumVars As Integer, _
ByRef fX() As Double, ByRef fParam() As Double, _
ByRef fFirstDerivX() As Double)
Dim I As Integer
For I = 0 To nNumVars - 1
fFirstDerivX(I) = FirstDeriv(nNumVars, fX, fParam, I)
Next I
End Sub
Protected Function LinSearch_DirectSearch(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double, _
ByRef fLambda As Double, ByRef fDeltaX() As Double, ByVal fInitStep As Double, ByVal fMinStep As Double) As Boolean
Dim F1, F2 As Double
F1 = MyFxEx(nNumVars, fX, fParam, fDeltaX, fLambda)
Do
F2 = MyFxEx(nNumVars, fX, fParam, fDeltaX, fLambda + fInitStep)
If F2 < F1 Then
F1 = F2
fLambda += fInitStep
Else
F2 = MyFxEx(nNumVars, fX, fParam, fDeltaX, fLambda - fInitStep)
If F2 < F1 Then
F1 = F2
fLambda -= fInitStep
Else
' reduce search step size
fInitStep /= 10
End If
End If
Loop Until fInitStep < fMinStep
Return True
End Function
Public Function CalcOptim(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double, _
ByRef fToler() As Double, ByVal fEpsFx As Double, ByVal fEpsGrad As Double, ByVal nMaxIter As Integer, _
ByRef nIter As Integer, ByRef sErrorMsg As String, _
ByVal MyFx As MyFxDelegate) As Double
Dim I As Integer
Dim fNorm As Double, fLambda As Double
Dim bStop As Boolean
Dim Index(nNumVars) As Integer
Dim fGrad1(nNumVars) As Double
Dim fGrad2(nNumVars) As Double
Dim g(nNumVars) As Double
Dim S(nNumVars) As Double
Dim d(nNumVars) As Double
Dim Bmat(nNumVars, nNumVars) As Double
Dim Mmat(nNumVars, nNumVars) As Double
Dim Nmat(nNumVars, nNumVars) As Double
Dim MM1(nNumVars, nNumVars) As Double
Dim MM2(nNumVars, nNumVars) As Double
Dim MM3(nNumVars, nNumVars) As Double
Dim MM4(nNumVars, nNumVars) As Double
Dim MM5(nNumVars, nNumVars) As Double
Dim VV1(nNumVars) As Double
' set error handler
On Error GoTo HandleErr
m_MyFx = MyFx
' set matrix B as an indentity
MatrixLibVb.MatIdentity(Bmat)
nIter = 0
' calculate initial gradient
GetFirstDerives(nNumVars, fX, fParam, fGrad1)
' start main loop
Do
nIter += 1
If nIter > nMaxIter Then
sErrorMsg = "Iter limits"
Exit Do
End If
' calcuate vector S() and reverse it's sign
MatrixLibVb.MatMultVect(Bmat, fGrad1, S)
MatrixLibVb.VectMultValInPlace(S, -1)
' normailize vector S
MatrixLibVb.NormalizeVect(S)
fLambda = 0
LinSearch_DirectSearch(nNumVars, fX, fParam, fLambda, S, 0.1, 0.00001)
' calculate optimum fX() with the given fLambda
For I = 0 To nNumVars - 1
d(I) = fLambda * S(I)
fX(I) += d(I)
Next I
' get new gradient
GetFirstDerives(nNumVars, fX, fParam, fGrad2)
' calculate vector g() and shift fGrad2() into fGrad1()
For I = 0 To nNumVars - 1
g(I) = fGrad2(I) - fGrad1(I)
fGrad1(I) = fGrad2(I)
Next I
' test for convergence
bStop = True
For I = 0 To nNumVars - 1
If Math.Abs(d(I)) > fToler(I) Then
bStop = False
Exit For
End If
Next I
If bStop Then
sErrorMsg = "Lam * S()"
Exit Do
End If
' exit if gradient is low
If MatrixLibVb.VectNorm(g) < fEpsGrad Then
sErrorMsg = "G Norm"
Exit Do
End If
'-------------------------------------------------
' Start elaborate process to update matrix B
'
' First calculate matrix M (stored as Mmat)
MatrixLibVb.VectToColumnMat(S, MM1) ' MM1 = S in matrix form
MatrixLibVb.VectToRowMat(S, MM2) ' MM2 = S^T in matrix form
MatrixLibVb.VectToColumnMat(g, MM3) ' MM3 = g in matrix form
MatrixLibVb.MatMultMat(MM1, MM2, Mmat) ' Mmat = S * S^T
MatrixLibVb.MatMultMat(MM2, MM3, MM4) ' MM4 = S^T * g
MatrixLibVb.MatMultValInPlace(Mmat, _
fLambda / MM4(0, 0)) ' calculate natrix M
' Calculate matrix nNumVars (stored as Nmat)
MatrixLibVb.MatMultVect(Bmat, g, VV1) ' VV1 = {B] g
MatrixLibVb.VectToColumnMat(VV1, MM1) ' MM1 = VV1 in column matrix form ([B] g)
MatrixLibVb.VectToRowMat(VV1, MM2) ' MM2 = VV1 in row matrix form ([B] g)^T
MatrixLibVb.MatMultMat(MM1, MM2, Nmat) ' Nmat = ([B] g) * ([B] g)^T
MatrixLibVb.VectToRowMat(g, MM1) ' MM1 = g^T
MatrixLibVb.VectToColumnMat(g, MM2) ' MM2 = g
MatrixLibVb.MatMultMat(MM1, Bmat, MM3) ' MM3 = g^T [B]
MatrixLibVb.MatMultMat(MM3, MM2, MM4) ' MM4 = g^T [B] g
MatrixLibVb.MatMultValInPlace(Nmat, _
-1 / MM4(0, 0)) ' calculate matrix nNumVars
MatrixLibVb.MatAddMatInPlace(Bmat, Mmat) ' B = B + M
MatrixLibVb.MatAddMatInPlace(Bmat, Nmat) ' B = B + nNumVars
Loop
ExitProc:
Return MyFx(nNumVars, fX, fParam)
HandleErr:
sErrorMsg = "Error: " & Err.Description
Resume ExitProc
End Function
End Class
