True BASIC Program to Find a Function Minimum

Using the Davidson-Fletcher-Powell (DFP) Method

by Namir Shammas

The following program uses the Davidson-Fletcher-Powell (DFP) method to find the minimum of a function. This method is a quasi-Newton method. That is, the DFP algorithm is based on Newton's method but performs different calculations to update the guess refinements.

The program prompts you to enter for each variable (i.e. dimension):

1. The maximum number of iterations.

2. The tolerance for the minimized function,

3. The tolerance for the gradient.

4. The initial guesses for the optimum point for each variable.

5. The tolerance for the guess refinement for each variable.

The program displays intermediate values for the function and the variables. The program displays the following final results:

1. The coordinates of the minimum point.

2. The minimum function value.

3. The number of iterations

The current code finds the minimum for the following function:

f(x1,x2) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

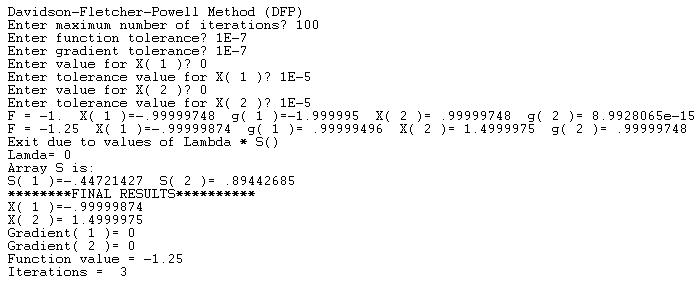

Here is a sample session to solve for the optimum of the above function:

Here is the BASIC listing:

! Davidson-Fletcher-Powell Method (DFP)

OPTION TYPO
OPTION NOLET

DECLARE NUMERIC MAX_VARS
DECLARE NUMERIC  N, I, EPSF, EPSG, fNorm, Lambda
DECLARE NUMERIC Iter, MaxIter, F
DECLARE NUMERIC bStop, bOK, boolRes, bTrue, bFalse

Dim X(1), grad1(1,1), grad2(1,1), g(1,1), S(1,1)
Dim d(1,1), Bmat(1,1), Mmat(1,1), Nmat(1,1)
Dim MM1(1,1), MM2(1,1), MM3(1,1), MM4(1,1)
Dim VV1(1,1), Toler(1)

bTrue = 1
bFalse = 0

SUB CalcNorm(X(,), N, FNorm)
  LOCAL I

  FNorm = 0
  For I = 1 To N
    FNorm = FNorm + X(I,1)^2
  Next I
  FNorm = Sqr(FNorm)

END SUB

SUB MyFx(X(), N, Res)
  ! Res = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
  Res = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
End SUB

SUB FirstDeriv(N, X(), iVar, funRes)
  LOCAL Xt, h, Fp, Fm

  Xt = X(iVar)
  h = 0.01 * (1 + Abs(Xt))
  X(iVar) = Xt + h
  CALL MyFx(X, N, Fp)
  X(iVar) = Xt - h
  CALL MyFx(X, N, Fm)
  X(iVar) = Xt
  funRes = (Fp - Fm) / 2 / h
End SUB

Sub GetFirstDerives(N, X(), FirstDerivX(,))

  LOCAL I

  For I = 1 To N
    CALL FirstDeriv(N, X, I, FirstDerivX(I,1))
  Next I
End Sub

SUB MyFxEx(N, X(), DeltaX(,), Lambda, funRes)
  LOCAL I, XX(1)
  !Dim XX()

  MAT REDIM XX(N)

  For I = 1 To N
    XX(I) = X(I) + Lambda * DeltaX(I,1)
  Next I

  CALL MyFx(XX, N, funRes)
End SUB

SUB LinSearch_DirectSearch(X(), N, Lambda, DeltaX(,), InitStep, MinStep, boolRes)
  LOCAL F1, F2

  CALL MyFxEx(N, X, DeltaX, Lambda, F1)

  Do
    CALL MyFxEx(N, X, DeltaX, Lambda + InitStep, F2)
    If F2 < F1 Then
      F1 = F2
      Lambda = Lambda + InitStep
    Else
      CALL MyFxEx(N, X, DeltaX, Lambda - InitStep, F2)
      If F2 < F1 Then
        F1 = F2
        Lambda = Lambda - InitStep
      Else
        ! reduce search step size
        InitStep = InitStep / 10
      End If
    End If
  Loop Until InitStep < MinStep

  boolRes = bTrue

End SUB

! Davidson-Fletcher-Powell Method (DFP)
MAX_VARS = 2
N = MAX_VARS

MAT REDIM Toler(MAX_VARS)
MAT REDIM X(MAX_VARS)
MAT REDIM grad1(MAX_VARS,1)
MAT REDIM grad2(MAX_VARS,1)
MAT REDIM g(MAX_VARS,1)
MAT REDIM S(MAX_VARS,1)
MAT REDIM d(MAX_VARS,1)
MAT REDIM Bmat(MAX_VARS, MAX_VARS)
MAT REDIM Mmat(MAX_VARS, MAX_VARS)
MAT REDIM Nmat(MAX_VARS, MAX_VARS)
MAT REDIM MM1(MAX_VARS, 1)
MAT REDIM MM2(MAX_VARS, MAX_VARS)
MAT REDIM MM3(MAX_VARS, MAX_VARS)
MAT REDIM MM4(MAX_VARS, MAX_VARS)
MAT REDIM VV1(MAX_VARS,1)

PRINT "Davidson-Fletcher-Powell Method (DFP)"
INPUT PROMPT "Enter maximum number of iterations? ": MaxIter
INPUT PROMPT "Enter function tolerance? ": EPSF
INPUT PROMPT "Enter gradient tolerance? ": EPSG
N = MAX_VARS
For I = 1 To N
  PRINT "Enter value for X(";I;")";
  INPUT X(I)
  PRINT "Enter tolerance value for X(";I;")";
  INPUT Toler(I)
Next I

! set matrix B as an indentity matrix
MAT Bmat = IDN(MAX_VARS)

Iter = 0
! calculate initial gradient
CALL GetFirstDerives(N, X, grad1)

! start main loop
Do

  Iter = Iter + 1
  If Iter > MaxIter Then
    PRINT "Reached iteration limits"
    Exit Do
  End If

  ! calcuate vector S() and reverse its sign
  MAT S = Bmat * grad1
  MAT S = (-1) * S
  ! normailize vector S
  CALL CalcNorm(S, N, fNorm)
  MAT S = (1/fNorm) * S ! objML.NormalizeVect S

  Lambda = 0.1
  CALL LinSearch_DirectSearch(X, N, Lambda, S, 0.1, 0.00001, boolRes)
  ! calculate optimum X() with the given Lambda
  MAT d = (Lambda) * S
  For I = 1 To N
    X(I) = X(I) + d(I,1)
  Next I

  ! get new gradient
  CALL GetFirstDerives(N, X, grad2)
  ! calculate vector g() and shift grad2() into grad1()
  MAT g = grad2 - grad1
  MAT grad1 = grad2


  ! test for convergence
  bStop = bTrue
  For I = 1 To N
    If Abs(d(I,1)) > Toler(I) Then
      bStop = bFalse
      Exit For
    End If
  Next I

  If bStop = bTrue Then
    PRINT "Exit due to values of Lambda * S()"
    PRINT "Lamda="; Lambda
    PRINT "Array S is:"
    For I = 1 To N
      PRINT "S(";I;")=";S(I,1);" ";
    Next I
    PRINT
    Exit Do
  End If

  ! exit if gradient is low
  CALL CalcNorm(g, N, fNorm)
  If fNorm < EPSG Then
    PRINT "Exit due to G Norm"
    PRINT "Norm=";fNorm
    Exit Do
  End If

  !-------------------------------------------------
  ! Start elaborate process to update matrix B
  !
  ! First calculate matrix M (stored as Mmat)
  ! MM1 = S in matrix form
  MAT MM1 = S
  ! MM2 =  S^T in matrix form
  MAT MM2 = TRN(S)
  ! MM3 = g in matrix form
  MAT MM3 = g
  ! Mmat = S * S^T
  MAT Mmat = MM1 * MM2
  ! MM4 = S^T * g
  MAT MM4 = MM2 * MM3
  ! calculate natrix M
  MAT Mmat = (Lambda / MM4(1,1)) * Mmat
  ! Calculate matrix N (stored as Nmat)
  ! VV1 = {B] g
  MAT VV1 = Bmat * g
  ! MM1 = VV1 in column matrix form ([B] g)
  MAT MM1 = VV1
  ! MM2 = VV1 in Iter matrix form ([B] g)^T
  MAT MM2 = TRN(VV1)
  ! Nmat = ([B] g) * ([B] g)^T
  MAT Nmat = MM1 * MM2
  ! MM1 = g^T
  MAT MM1 = TRN(g)
  ! MM2 = g
  MAT MM2 = g
  ! MM3 = g^T [B]
  MAT MM3 = MM1 * Bmat
  ! MM4 = g^T [B] g
  MAT MM4 = MM3 * MM2
  ! calculate matrix N
  MAT Nmat = (-1/MM4(1,1)) * Nmat

  ! B = B + M
  MAT Bmat = Bmat + Mmat
  ! B = B + N
  MAT Bmat = Bmat + Nmat

  CALL MyFx(X, N, F)
  PRINT "F = ";F;" ";
  For I = 1 To N
    PRINT "X(";I;")=";X(I);" ";
    PRINT "g(";I;")=";g(I,1);" ";
  Next I
  PRINT
Loop

PRINT "********FINAL RESULTS**********"
For I = 1 To N
  PRINT "X(";I;")=";X(I)
Next I
For I = 1 To N
  PRINT "Gradient(";I;")=";g(I,1)
Next I
CALL MyFx(X, N, F)
PRINT "Function value = ";F
PRINT "Iterations = ";Iter

END
