HP-71B Program to Find a Function Minimum

Using the Conjugate Gradient Search Method

by Namir Shammas

The following program calculates the minimum point of a multi-variable function using the Conjugate Gradient (Fletcher-Reeves) method.

The program prompts you to enter for each variable:

1. The coordinates of the minimum value.

2. The minimum function value.

3. The maximum number of iterations

The program displays intermediate results to show the iteration progress and also the following final results:

1. The coordinates of the minimum value.

2. The minimum function value.

3. The number of iterations

The current code finds the minimum for the following function:

f(x1,x2) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

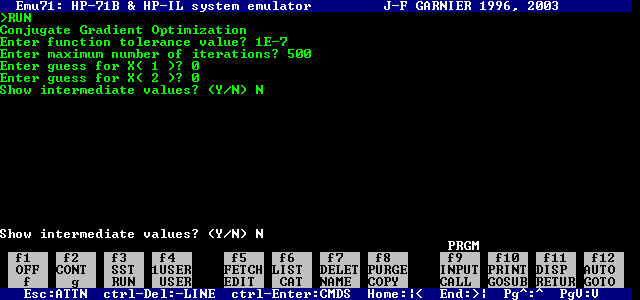

Here is a sample session. The first figure shows the input.:

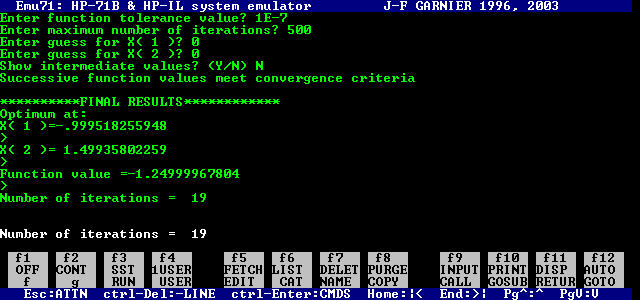

The second figure shows the output:

Here is the BASIC listing:

10 ! Conjugate Gradient (Fletcher-Reeves) method
20 !
30 ! USES JPCROM TO SUPPORT ADVANCED LOOPS AND
40 ! DECISION-MAKING CONSTRUCTS
50 !
60 N = 2
70 DIM X(N), D(N), D0(N)
80 ! Input data
90 DISP "Conjugate Gradient Optimization"
100 INPUT "Enter function tolerance value? "; E
110 INPUT "Enter maximum number of iterations? "; I9
120 For I = 1 to N
130 DISP "Enter guess for X(";I;")";
140 INPUT X(I)
150 Next I
160 INPUT  "Show intermediate values? (Y/N) "; A$
170 If UPRC$(A$[1,1]) = "Y" Then
180 For I = 1 To N
190 DISP "X(";I;")",X(I);" ";
200 Next I
210 DISP
220 End If
230 !
240 ! calculate function value at initial point
250 CALL MyFx(X, N, L)
260 !
270 CALL GetGrads(X, N, D, D8)
280 !
290 L8 = 0
300 CALL LSrch(X, N, L8, D, 0.1, 0.000001, R0)
310 If R0 = 1 Then
320 For I = 1 To N
330 X(I) = X(I) + L8 * D(I)
340 Next I
350 Else
360 DISP "Failed linear search"
370 STOP
380 End If
390 !
400 I0 = 1
410 LOOP
420 I0 = I0 + 1
430 If I0 > I9 Then
440 DISP "Reached maximum iterations limit"
450 LEAVE
460 End If
470 D9 = D8
480 For I = 1 To N
490 D0(I) = D(I) ! save old gradient
500 Next I
510 CALL GetGrads(X, N, D, D8)
520 For I = 1 To N
530 D(I) = (D8 / D9) ^ 2 * D0(I) - D(I)
540 Next I
550 If D8 <= E Then
560 DISP "Gradient norm meets convergence criteria"
570 LEAVE
580 End If
590 L8 = 1
600 CALL LSrch(X, N, L8, D, 0.1, 0.000001, R0)
610 If R0 = 1 Then
620 For I = 1 To N
630 X(I) = X(I) + L8 * D(I)
640 Next I
650 CALL MyFx(X, N, F)
660 If Abs(F - L) < E Then
670 DISP "Successive function values meet convergence criteria"
680 LEAVE
690 Else
700 L = F
710 End If
720 Else
730 DISP "Failed linear search",
740 LEAVE
750 End If
760 If UPRC$(A$[1,1]) = "Y" Then
770 For I = 1 To N
780 DISP "X(";I;")";X(I)," ";
790 Next I
800 DISP
810 End If
820 END LOOP
830 !
840 DISP
850 DISP "**********FINAL RESULTS************"
860 DISP "Optimum at:"
870 For I = 1 To N
880 DISP "X(";I;")=";X(I) @ PAUSE
890 Next I
900 DISP "Function value ="; L @ PAUSE
910 DISP "Number of iterations = ";I0
920 !
930 !---------------- Declare SUBs -------------------
940 !
950 SUB MyFx(X(), N, R)
960 ! R = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
970 R = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
980 End SUB
990 !
1000 SUB MyFxEx(N, X(), D(), L, R)
1010 DIM X0(N)
1020 For I = 1 To N
1030 X0(I) = X(I) + L * D(I)
1040 Next I
1050 CALL MyFx(X0, N, R)
1060 End SUB
1070 !
1080 Sub GetGrads(X(), N, D(), D9)
1090 D9 = 0
1100 For I = 1 To N
1110 X0 = X(I)
1120 H = 0.01 * (1 + ABS(X0))
1130 X(I) = X0 + H
1140 CALL MyFx(X, N, F1)
1150 X(I) = X0 - H
1160 CALL MyFx(X, N, F2)
1170 X(I) = X0
1180 D(I) = (F1 - F2) / 2 / H
1190 D9 = D9 + D(I) ^ 2
1200 Next I
1210 D9 = Sqr(D9)
1220 End Sub
1230 !
1240 SUB LSrch(X(), N, L, D(), I9, I0, R)
1250 CALL MyFxEx(N, X, D, L, F1)
1260 REPEAT
1270 CALL MyFxEx(N, X, D, L + I9, F2)
1280 If F2 < F1 Then
1290 F1 = F2
1300 L = L + I9
1310 Else
1320 CALL MyFxEx(N, X, D, L - I9, F2)
1330 If F2 < F1 Then
1340 F1 = F2
1350 L = L - I9
1360 Else
1370 ! reduce search step size
1380 I9 = I9 / 10
1390 End If
1400 End If
1410 UNTIL I9 < I0
1420 R = 1
1430 End SUB
The above listing uses the JPCROM to employ more structured constructs for loops and decision-making. The above listing uses the REPEAT-UNTIL and LOOP-ENDLOOP loops and also the IF-THEN-ELSE-ENDIF enhanced version of the basic IF statement. These program flow control statements limits or eliminates using the GOTO statements and make the programs easier to read and update. Here is the version of the listing that is indented and void of line numbers. I am including it here since it is easier to read than the above listing although it will not run on either the HP-71B handheld computer or the EMU71 emulator..
! Conjugate Gradient (Fletcher-Reeves) method
!
! USES JPCROM TO SUPPORT ADVANCED LOOPS AND
! DECISION-MAKING CONSTRUCTS
!
N = 2
DIM X(N), D(N), D0(N)
! Input data
DISP "Conjugate Gradient Optimization"
INPUT "Enter function tolerance value? "; E
INPUT "Enter maximum number of iterations? "; I9
For I = 1 to N
  DISP "Enter guess for X(";I;")";
  INPUT X(I)
Next I
INPUT  "Show intermediate values? (Y/N) "; A$
If UPRC$(A$[1,1]) = "Y" Then
  For I = 1 To N
    DISP "X(";I;")",X(I);" ";
  Next I
  DISP
End If
!
! calculate function value at initial point
CALL MyFx(X, N, L)
!
CALL GetGrads(X, N, D, D8)
!
L8 = 0
CALL LSrch(X, N, L8, D, 0.1, 0.000001, R0)
If R0 = 1 Then
  For I = 1 To N
    X(I) = X(I) + L8 * D(I)
  Next I
Else
  DISP "Failed linear search"
  STOP
End If
!
I0 = 1
LOOP
  I0 = I0 + 1
  If I0 > I9 Then
    DISP "Reached maximum iterations limit"
    LEAVE
  End If
  D9 = D8
  For I = 1 To N
    D0(I) = D(I) ! save old gradient
  Next I
  CALL GetGrads(X, N, D, D8)
  For I = 1 To N
    D(I) = (D8 / D9) ^ 2 * D0(I) - D(I)
  Next I
  If D8 <= E Then
    DISP "Gradient norm meets convergence criteria"
    LEAVE
  End If
  L8 = 1
  CALL LSrch(X, N, L8, D, 0.1, 0.000001, R0)
  If R0 = 1 Then
    For I = 1 To N
      X(I) = X(I) + L8 * D(I)
    Next I
    CALL MyFx(X, N, F)
    If Abs(F - L) < E Then
      DISP "Successive function values meet convergence criteria"
      LEAVE
    Else
      L = F
    End If
  Else
    DISP "Failed linear search",
    LEAVE
  End If
  If UPRC$(A$[1,1]) = "Y" Then
    For I = 1 To N
      DISP "X(";I;")",X(I);
    Next I
  DISP
  End If
END LOOP
!
DISP
DISP "**********FINAL RESULTS************"
DISP "Optimum at:"
For I = 1 To N
  DISP "X(";I;")=";X(I) @ PAUSE
Next I
DISP "Function value ="; L @ PAUSE
DISP "Number of iterations = ";I0
!
!---------------- Declare SUBs -------------------
!
SUB MyFx(X(), N, R)
  ! R = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
  R = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
End SUB
!
SUB MyFxEx(N, X(), D(), L, R)
  DIM X0(N)
  For I = 1 To N
    X0(I) = X(I) + L * D(I)
  Next I
  CALL MyFx(X0, N, R)
End SUB
!
Sub GetGrads(X(), N, D(), D9)
  D9 = 0
  For I = 1 To N
    X0 = X(I)
    H = 0.01 * (1 + ABS(X0))
    X(I) = X0 + H
    CALL MyFx(X, N, F1)
    X(I) = X0 - H
    CALL MyFx(X, N, F2)
    X(I) = X0
    D(I) = (F1 - F2) / 2 / H
    D9 = D9 + D(I) ^ 2
  Next I
  D9 = Sqr(D9)
End Sub
!
SUB LSrch(X(), N, L, D(), I9, I0, R)
  CALL MyFxEx(N, X, D, L, F1)
  REPEAT
    CALL MyFxEx(N, X, D, L + D, F2)
    If F2 < F1 Then
      F1 = F2
      L = L + I9
    Else
      CALL MyFxEx(N, X, D, L - D, F2)
      If F2 < F1 Then
        F1 = F2
        L = L - I9
      Else
        ! reduce search step size
        I9 = I9 / 10
      End If
    End If
  UNTIL I9 < I0
  R = 1
End SUB

Here is a version of the first listing that DOES NOT rely on the JPCROM. This version should run on the basic HP-71B with no Math or JPCROM modules.

10 ! Conjugate Gradient (Fletcher-Reeves) method
50 !
60 N = 2
70 DIM X(N), D(N), D0(N)
80 ! Input data
90 DISP "Conjugate Gradient Optimization"
100 INPUT "Enter function tolerance value? "; E
110 INPUT "Enter maximum number of iterations? "; I9
120 For I = 1 to N
130 DISP "Enter guess for X(";I;")";
140 INPUT X(I)
150 Next I
160 INPUT  "Show intermediate values? (Y/N) "; A$
170 If UPRC$(A$[1,1]) = "Y" Then
180 For I = 1 To N
190 DISP "X(";I;")",X(I);" ";
200 Next I
210 DISP
220 !End If
230 !
240 ! calculate function value at initial point
250 CALL MyFx(X, N, L)
260 !
270 CALL GetGrads(X, N, D, D8)
280 !
290 L8 = 0
300 CALL LSrch(X, N, L8, D, 0.1, 0.000001, R0)
310 If R0 = 0 Then 350
320 For I = 1 To N
330 X(I) = X(I) + L8 * D(I)
340 Next I
345 GOTO 380
350 !Else
360 DISP "Failed linear search"
370 STOP
380 !End If
390 !
400 I0 = 1
410 !LOOP
420 I0 = I0 + 1
430 If I0 <= I9 Then 460
440 DISP "Reached maximum iterations limit"
450 GOTO 840
460 !End If
470 D9 = D8
480 For I = 1 To N
490 D0(I) = D(I) ! save old gradient
500 Next I
510 CALL GetGrads(X, N, D, D8)
520 For I = 1 To N
530 D(I) = (D8 / D9) ^ 2 * D0(I) - D(I)
540 Next I
550 If D8 > E Then 580
560 DISP "Gradient norm meets convergence criteria"
570 GOTO 840
580 !End If
590 L8 = 1
600 CALL LSrch(X, N, L8, D, 0.1, 0.000001, R0)
610 If R0 = 0 Then 720
620 For I = 1 To N
630 X(I) = X(I) + L8 * D(I)
640 Next I
650 CALL MyFx(X, N, F)
660 If Abs(F - L) >= E Then 690
670 DISP "Successive function values meet convergence criteria"
680 GOTO 840
690 !Else
700 L = F
710 !End If
715 GOTO 750
720 !Else
730 DISP "Failed linear search",
740 GOTO 840
750 !End If
760 If UPRC$(A$[1,1]) <> "Y" Then 810
770 For I = 1 To N
780 DISP "X(";I;")";X(I)," ";
790 Next I
800 DISP
810 !End If
820 GOTO 410 ! END LOOP
830 !
840 DISP
850 DISP "**********FINAL RESULTS************"
860 DISP "Optimum at:"
870 For I = 1 To N
880 DISP "X(";I;")=";X(I) @ PAUSE
890 Next I
900 DISP "Function value ="; L @ PAUSE
910 DISP "Number of iterations = ";I0
920 !
930 !---------------- Declare SUBs -------------------
940 !
950 SUB MyFx(X(), N, R)
960 ! R = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
970 R = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
980 End SUB
990 !
1000 SUB MyFxEx(N, X(), D(), L, R)
1010 DIM X0(N)
1020 For I = 1 To N
1030 X0(I) = X(I) + L * D(I)
1040 Next I
1050 CALL MyFx(X0, N, R)
1060 End SUB
1070 !
1080 Sub GetGrads(X(), N, D(), D9)
1090 D9 = 0
1100 For I = 1 To N
1110 X0 = X(I)
1120 H = 0.01 * (1 + ABS(X0))
1130 X(I) = X0 + H
1140 CALL MyFx(X, N, F1)
1150 X(I) = X0 - H
1160 CALL MyFx(X, N, F2)
1170 X(I) = X0
1180 D(I) = (F1 - F2) / 2 / H
1190 D9 = D9 + D(I) ^ 2
1200 Next I
1210 D9 = Sqr(D9)
1220 End Sub
1230 !
1240 SUB LSrch(X(), N, L, D(), I9, I0, R)
1250 CALL MyFxEx(N, X, D, L, F1)
1260 !REPEAT
1270 CALL MyFxEx(N, X, D, L + I9, F2)
1280 If F2 >= F1 Then 1310
1290 F1 = F2
1300 L = L + I9
1305 GOTO 1400
1310 !Else
1320 CALL MyFxEx(N, X, D, L - I9, F2)
1330 If F2 >= F1 Then 1360
1340 F1 = F2
1350 L = L - I9
1355 GOTO 1390
1360 !Else
1370 ! reduce search step size
1380 I9 = I9 / 10
1390 !End If
1400 !End If
1410 IF I9 >= I0 THEN 1260
1420 R = 1
1430 End SUB
